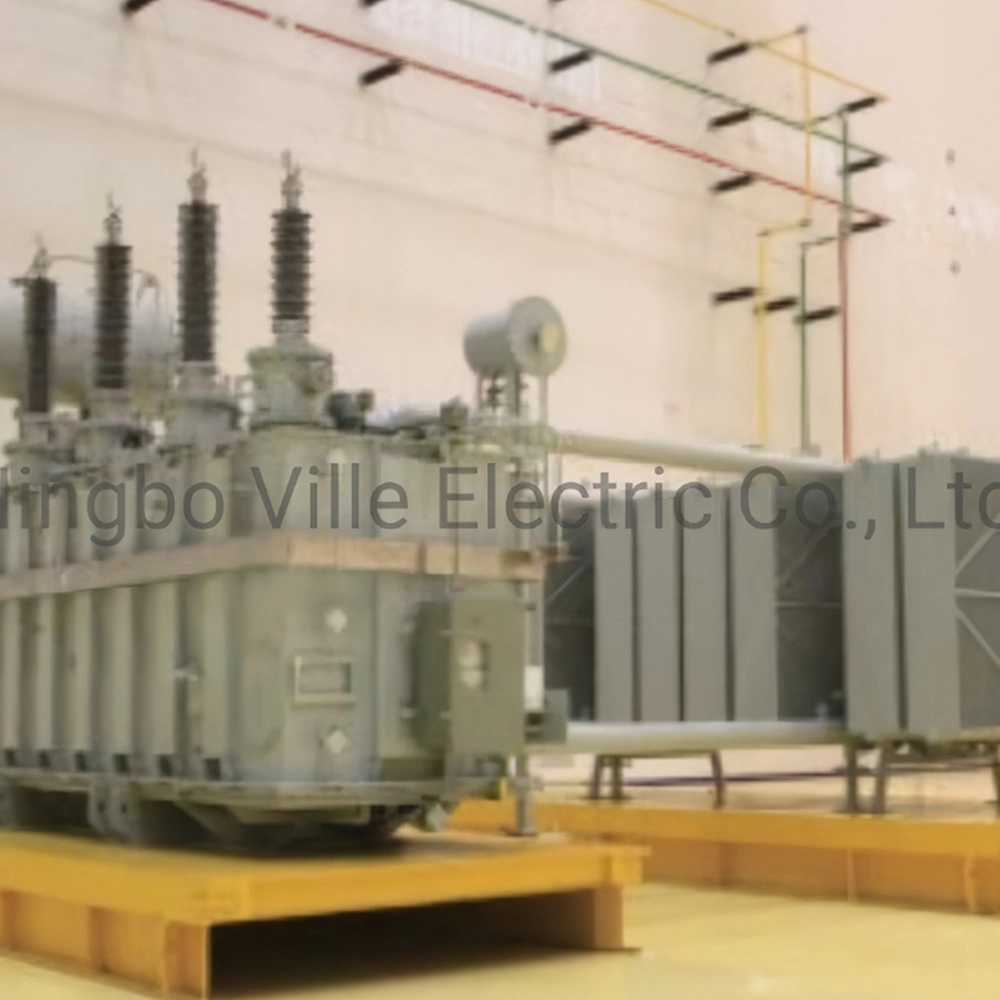

125000kVA 35kv Electric Arc Furnace Transformer 125mva 50mva 33kv
Electric furnace transformers are transformers which supply power to the electric furnaces. It can drop high voltage to the working voltage the electric furnaces need.
There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers cooperating with them. Now, our company manufactures following electric furnace transformers:electric furnace transformers used in steelelectric furnaces(including on-laod,no-load and enclosed reactor) ; mineral hot furnace transformers used to smelt kinds of iron alloys, hydrosilicons, carbides, etc(single phase,three phases on-load and no-load tap changer). They are low loss and energy-saving products.Cooling methods are self-cooling, forced oil water cooling, etc. It can be designed specially according with customers' requirements.
Model NO.: HSSPZ-125000/35
Cooling Method: Oil-immersed Type Transformer
Winding Type: Two-winding Transformer
BASIC INFO.
| Model NO. | HSSPZ-125000/35 | Specification | IEC CE, ISO |
| Cooling Method | Oil-immersed Type Transformer | Trademark | VILLE |
| Winding Type | Two-winding Transformer | Origin | Ningbo China |
| Certification | ISO9001-2000 | HS Code | 8504231100 |
| Frequency Characteristics | Power Frequency | Production Capacity | 400/Year |
| Shape of Core | Ring | Packaging & Delivery | |
| Brand | Ville | Package size per unit product | 1.00cm * 1.00cm * 1.00cm |
| Transport Package | Wooden Cases | Gross weight per unit product | 1.000kg |
The meaning of model
H--Steelmaking arc furnace,HJ--ladle furnace,HZ--electro-slag furnace,HC--calcium carbide furnace,HK--
mineral hot furnace,HG--line frequency induction furnace;
Number of phase:D--single phase,S--three phase;
Types of cooling device :ONAN,wind cooling F,water cooling S.
The methods of oil circulation:natural circulation,forced oilcirculation P.
Tap changer:off-circuit tap changer,OLTC Z.
Enclosed attached device:changing leakage flux,enclosed reactor K.
Rated capacity:KVA.
Voltage class:KV.Capacity: 125MVA
Voltage:35kv
