12.5mva 35kv arc furnace transformer with Non-excitation-tap-changing electric arc furnace transformer

FOB Reference Price:Get Latest Price
$120,000.00 - $180,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
VILLE
Model Number:
HSSP-12500/35
Usage:
steel industry
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
eight
Type:
Oil Immersed
Rated capacity:
10kva-144mva
Standard:
IEC60076
Frequency:
50Hz/60Hz
Input voltage:
35kv
Color:
Grey
Rated voltage:
10kV-35kV
Material:
100% Copper Wire
Application:
Steel industry
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The accessories packed in plywood cases,the main body in nude.
Port
shanghai or ningbo port
Product Details

110kV/66kV/35kV

Main Function and Features:

Electric furnace transformers are transformers which supply power to the electric furnaces. It can drop high voltage to the working voltage the electric furnaces need.

There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers
cooperating with them.Now,our company manufactures following electric furnace transformers:electric
furnace transformers used in steelelectric furnaces(including on-laod, no-load and enclosed reactor) ;
mineral hot furnace transformers used to smelt kinds of iron alloys, hydrosilicons, carbides,etc(single phase,three phases on-load and no-load tap changer).They are low loss and energy-saving products.Cooling methods are self-cooling, forced oil water cooling, etc.It can be designed specially according with customers'.


The model of the electric furnace transformer is expressed as follows:
Application--Number of Phases--Cooling Type--Type of Oil Circulation--Type of Taping--Built-in Accessories--Rated Power/ Voltage Class


The meaning of model:
H--Steelmaking arc furnace,HJ--ladle furnace,HZ--electro-slag furnace,HC--calcium carbide furnace,HK--mineral hot furnace,HG--line frequency induction furnace

Number of phase:
D--single phase,S--three phase

Types of cooling device:
ONAN,wind cooling F,water cooling S.

The methods of oil circulation:
natural circulation,forced oilcirculation P.

Tap changer:
on load tap changer,OLTC Z.

Encclosed attached device:
changing leakage flux, enclosed reactor K.
Rated capacity, KVA
Voltage class:KV


Type:HSSP-12500/35
Rated Power(kVA):12500
Connection Symbol:Yd11
Primary Voltage(kV):35
Secondary Voltage(V):340-195
Regulation Voltage Step:11
Type of Tapping:Off-circuit power driven
Short-Circuit Impedance(%):8
No-Load Loss(kW):20
On-load Loss(kW):107
Active Part Weight(TON):19.1
Oil Weight(TON):8.1
Transportation Weight(TON):31
Total Weight(TON):34.5

Product Introduction
Product Parameters
Product Details Show
Why Choose Us

About us

1, the company professional to do carbon and solid fuels.

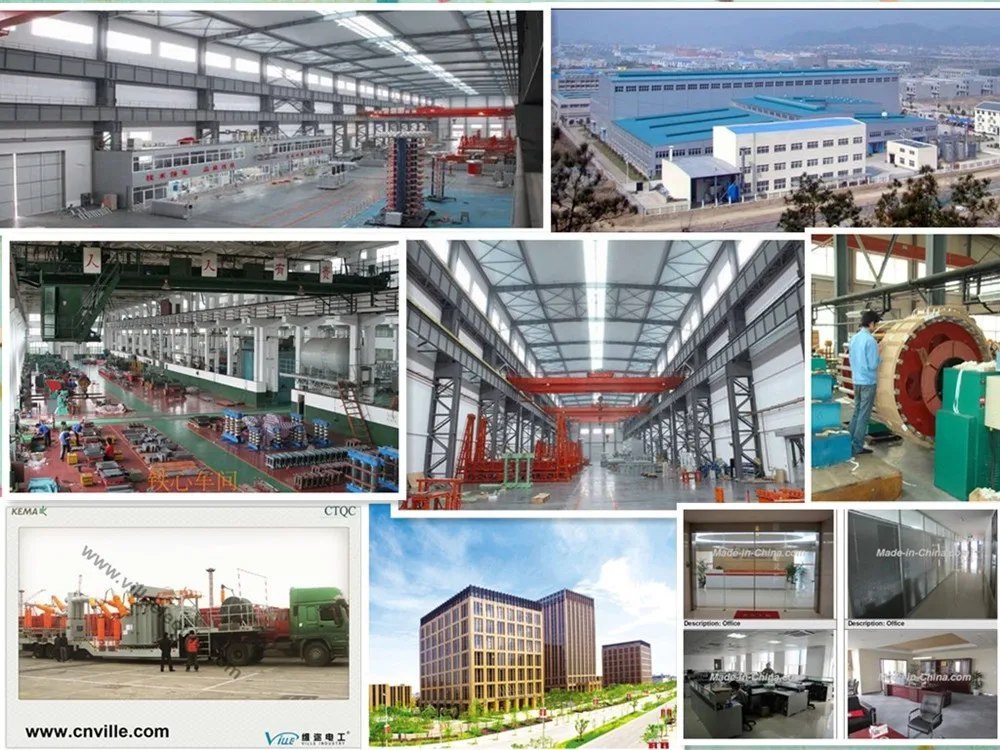

Equipment & technology

2, the quality of solid fuel and production is the biggest supplier in

Service

3, stable product quality , supply, the good faith management

Product Processing

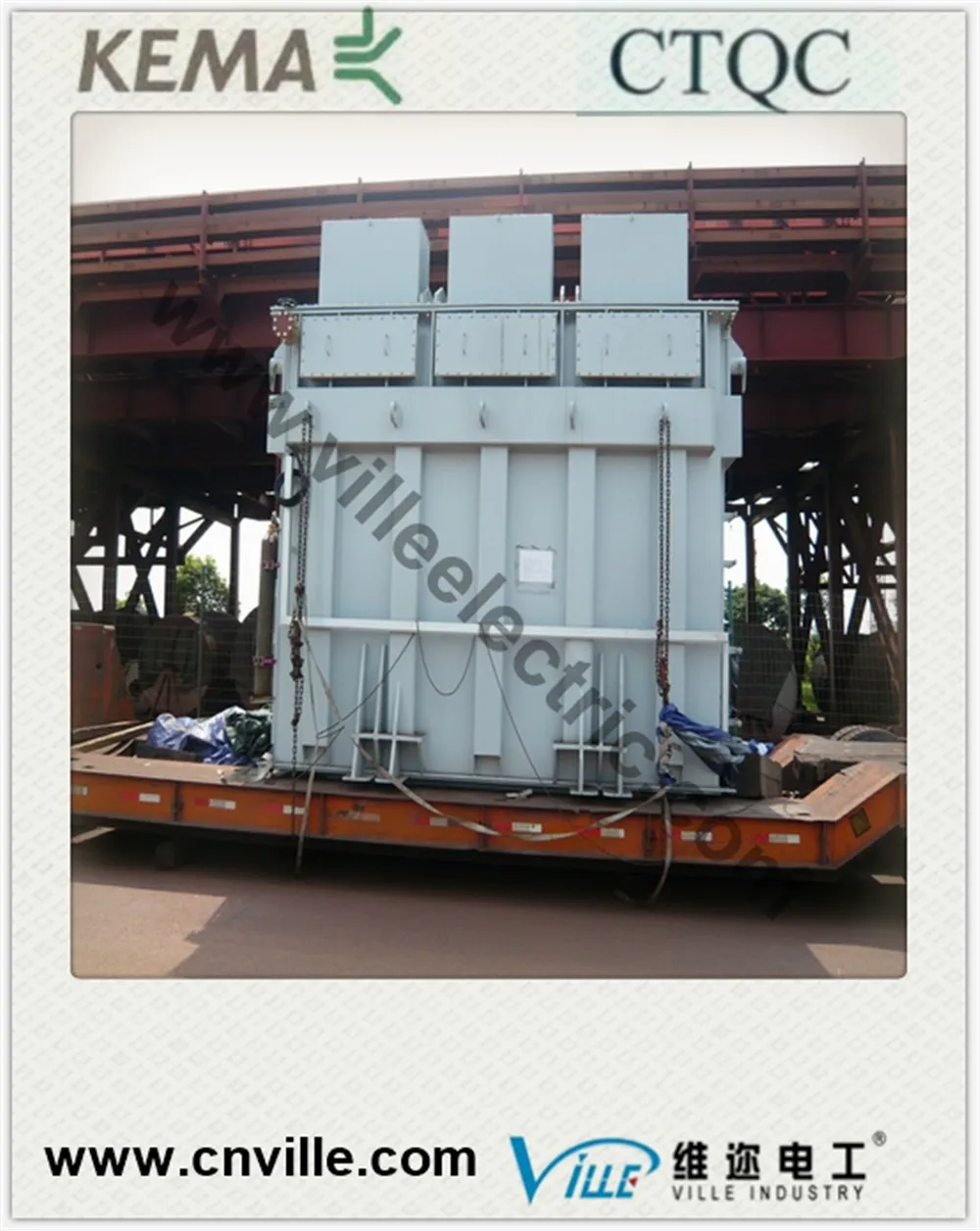

Product Packing

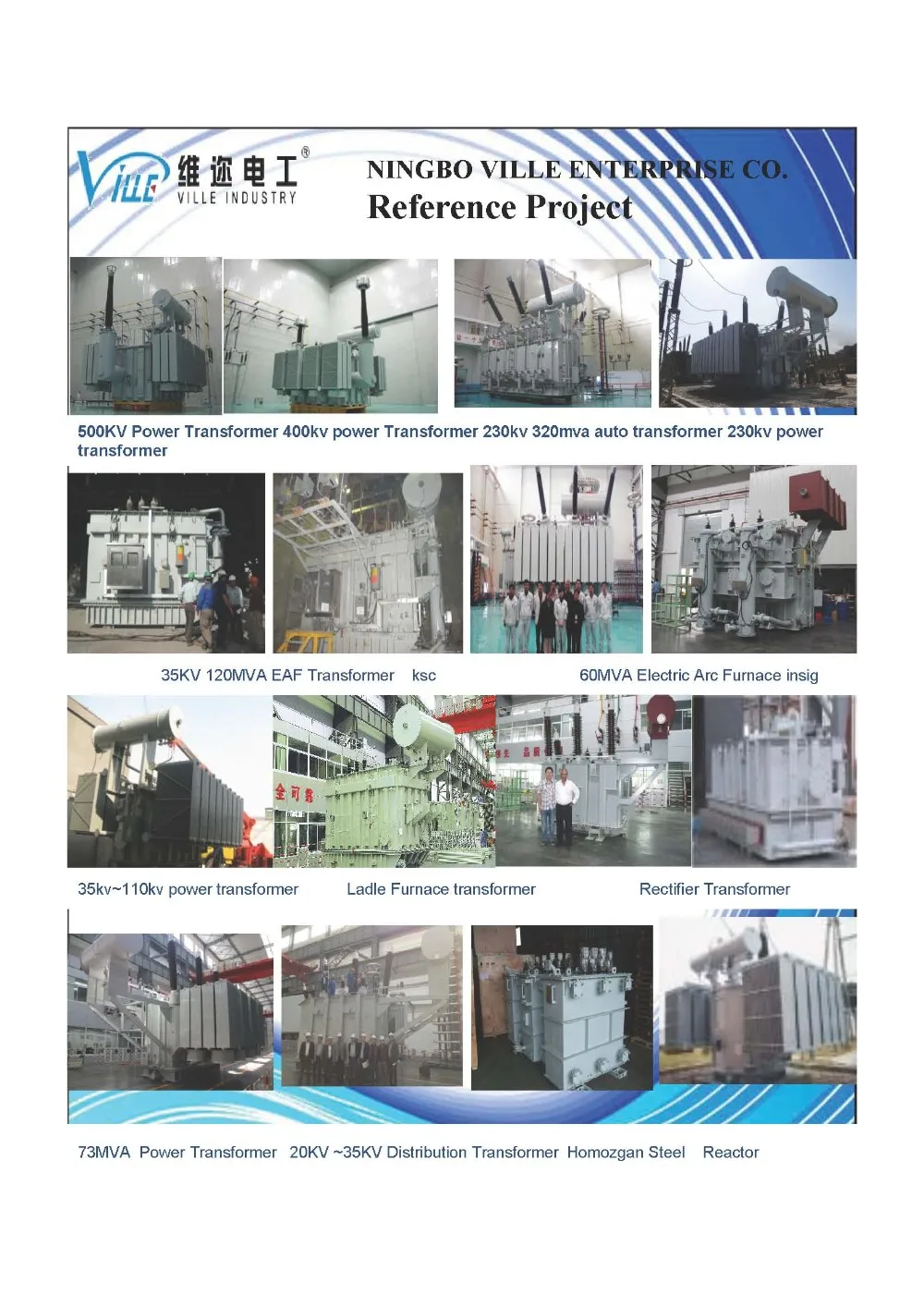

Job Reference List

Our advantages:

Quality Assurance

--From the very beginning, VILLE ensures quality in every step to achieve the best quality.

Experience Sharing

--With more than 30 years' experience in power industry, VILLE brings you an optimized solution.

Global Service

--Wherever you are, VILLE global network will support and provide you with value.

Quick Response

--In response to your needs without delay, VILLE knows the value of your time.
