Power Transformer 220kv~245kv 3 Phase 230KV Customized Oil Immersed Power Transformers

FOB Reference Price:Get Latest Price
$120,000.00 - $180,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
VILLE
Model Number:
SFZ11
Usage:
Power
Phase:
Three
Coil Structure:
Toroidal
Coil Number:
three
Supply Ability
Supply Ability:
1 Set/Sets per Quarter
Packaging & Delivery
Packaging Details

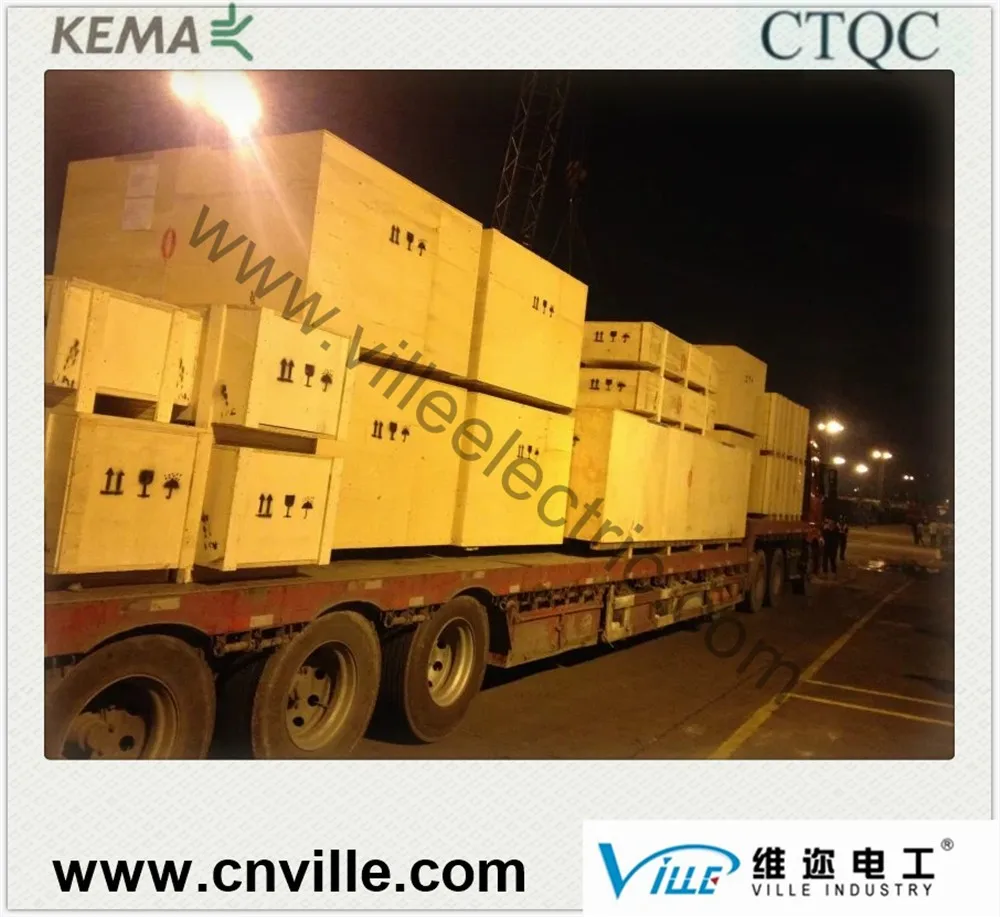

The accessories packed in plywood cases,the main body in nude.
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Details

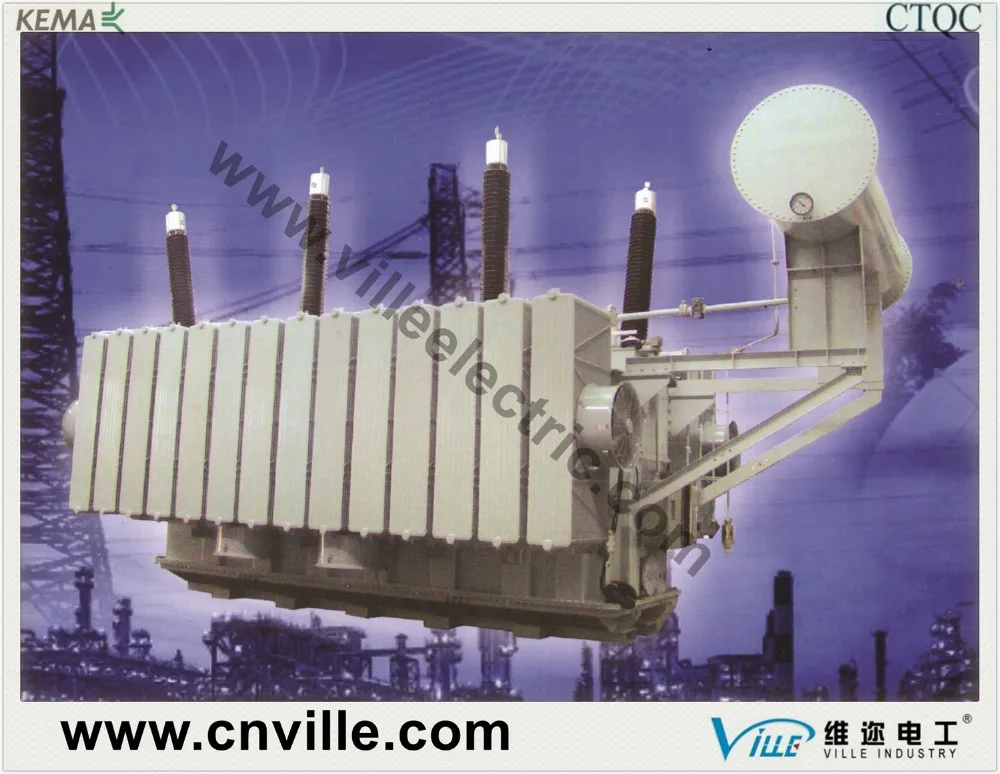

Power Transformer

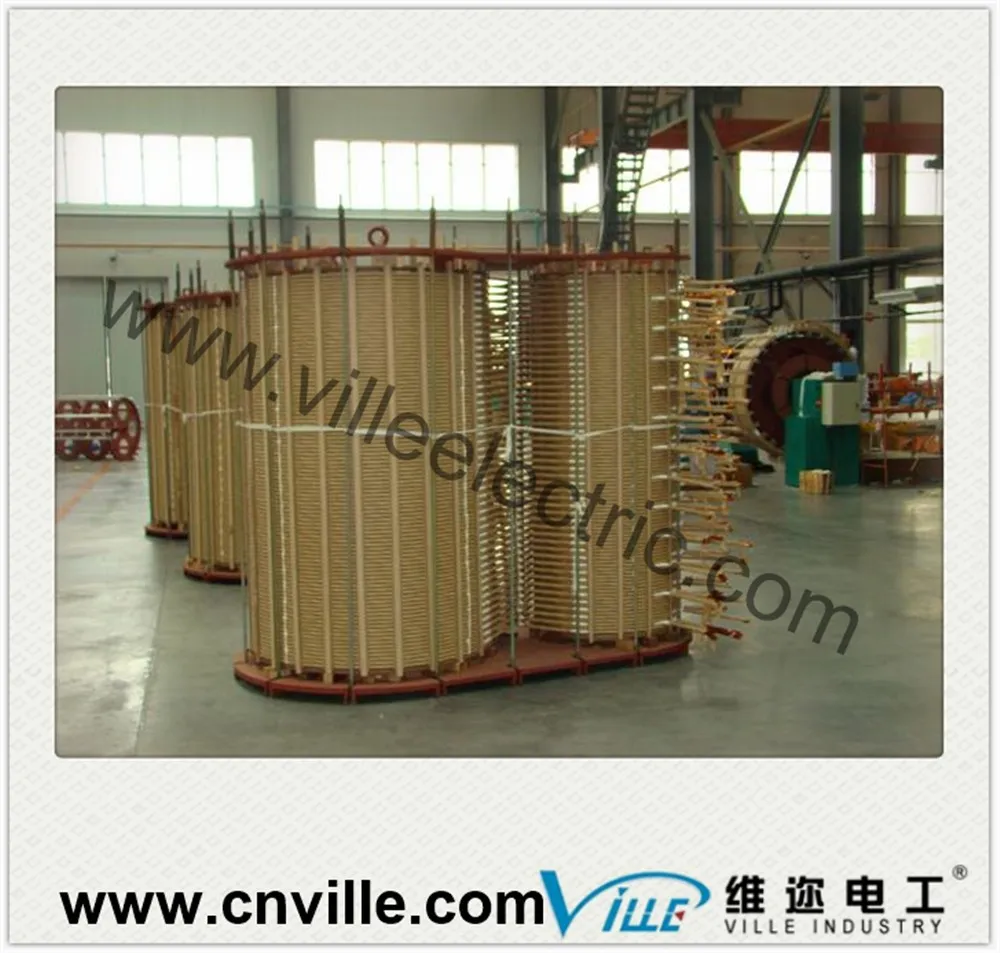

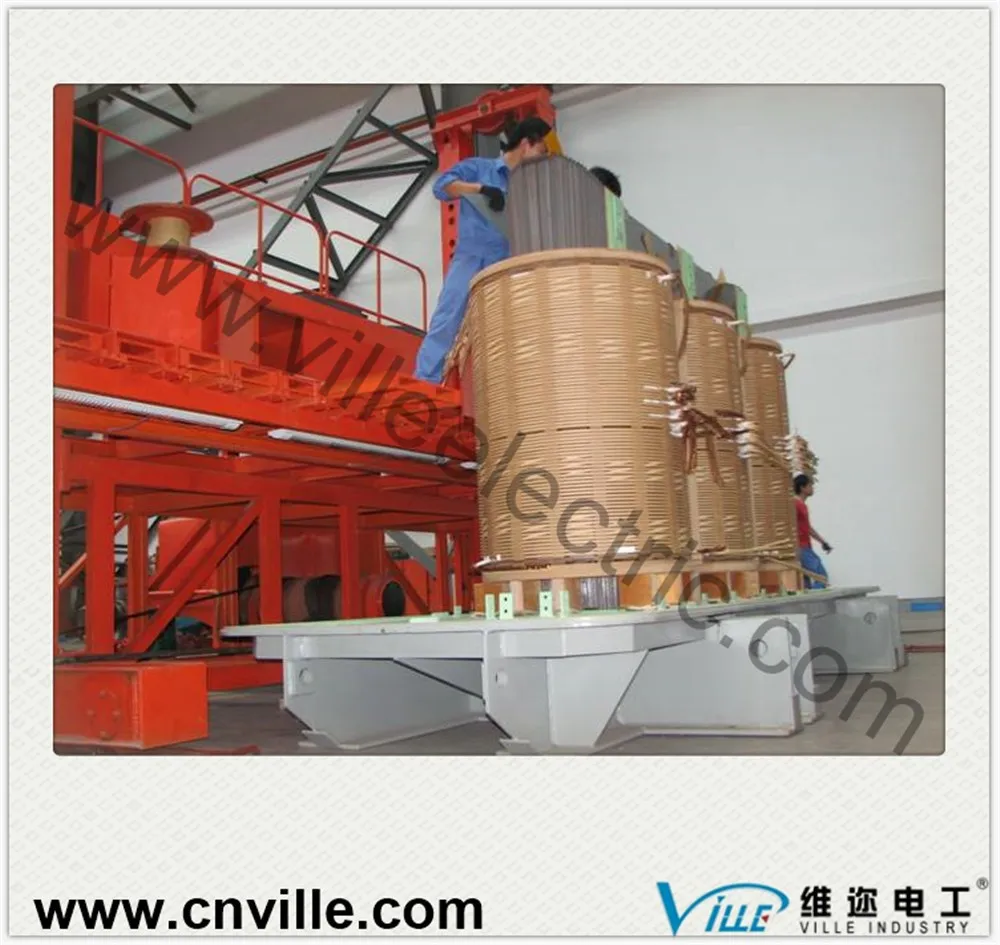

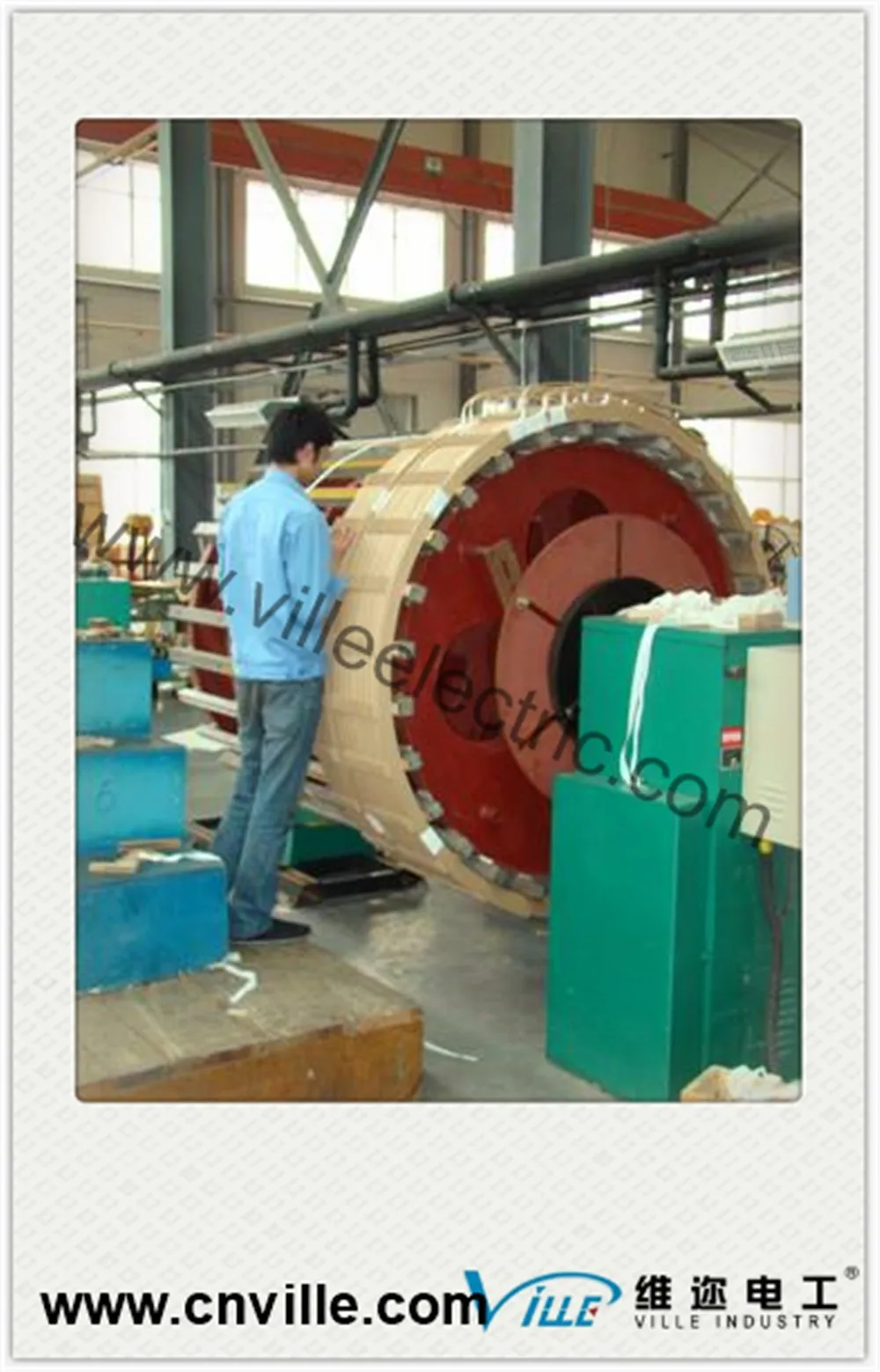

230-242kV on-load-tap-changing power transformer is made of high-quality silicon-steel sheets, and laminated by steps. It is advantageous in low loss, low noise, low voltage partial discharge and high anti short-circuit capacity. The dynamical and thermal stability of this transformer, of which the coils are winded by high-quality oxygen-free copper wire as well as used pre-compressing brackets processes and interior and exterior structure. The transformer tank used wave form shell, has very nice appearance, the core is with D shape yoke and 45 angle seaming. The core and oil box are well fixed and well protected on moving.

Three-phase dual winding oil immersed power transformer with OLTC

Type: SFZ-120000/230

Rated voltage: 230/34 kV

Rated capacity: 100000/120000kVA

Rated voltage ratio: 230± 8× 1.25%/34kV

Rated current: 301/2038A

Phase number: Three

Rated frequency: 50 Hz

Connection: Ynyn0(d11)

Voltage regulating method: Neutral point on-load Regulating

Short circuit impedance: 9.5%(10MVA)

Cooling mode: ONAN/ONAF


Low loss: No-load losses is about 40% lower than that required in current national standard GB6451-1999; load losses is about 15% lower than that required in current national standard GB6451-1999;

Low noise level: <60dB, about 20dB lower than that required in the national standard.

Low partial discharge: the full range process of 220kV product is dust-free operation; metal parts and insulation parts inside the transformer are all rounded; the partial discharge is controlled to be lower than 70pc;

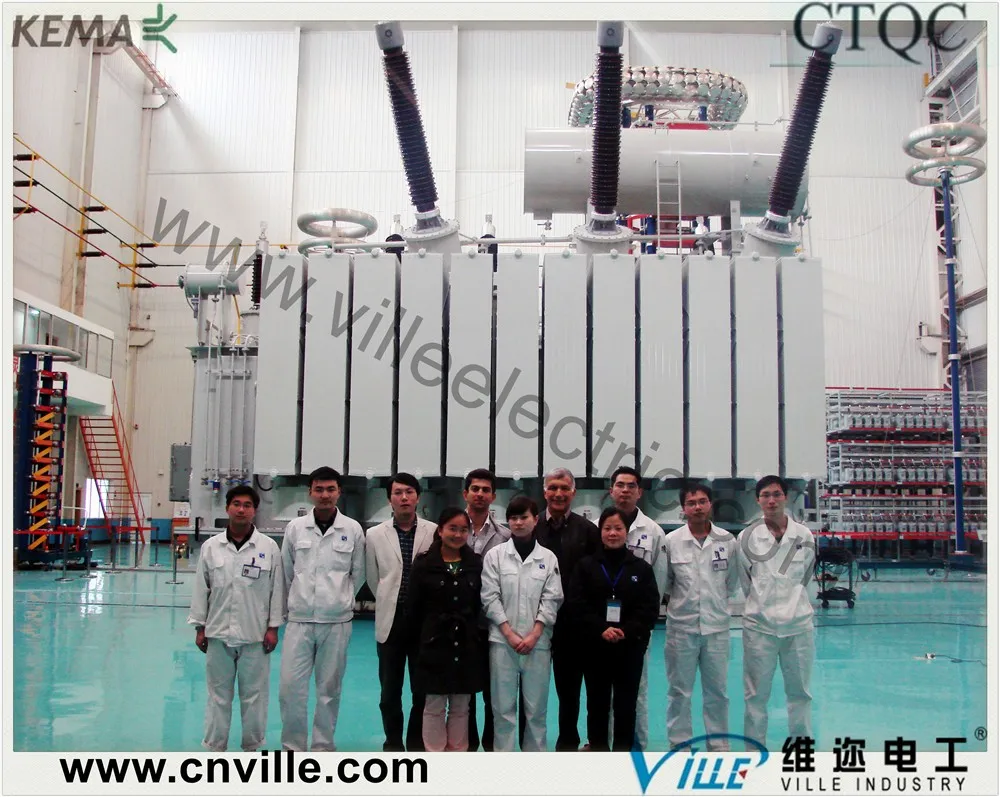

High short-circuit capacity: the independently designed SFP10-200000/220 transformer of the Company has passed the short-circuit test of the National Transformer Quality Test & Inspection Center (CTQC) (CTQC).

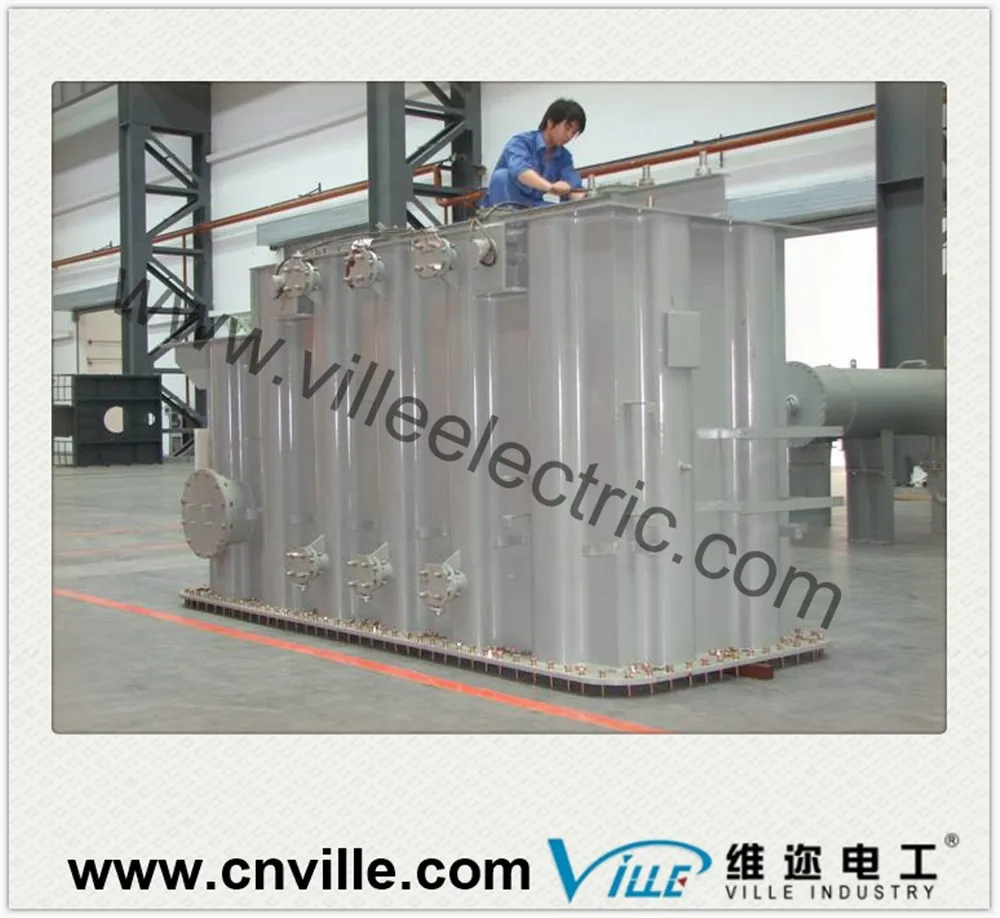

Beautiful appearance: oil tank bending corrugated structure, shot blasting de-dusting, powder EFI paint, wide fin radiator, never fade in color;

No leakage: all seal with limit position and upper & lower tank edges are sealed along two channels; sealing gasket is imported. We solemnly commit no leakage of oil.


Product Introduction

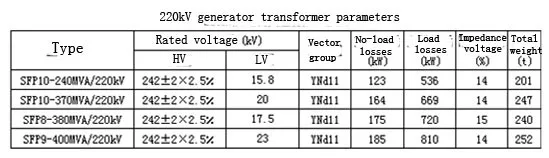

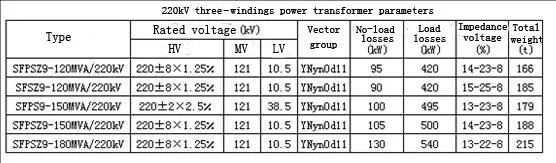

Product Parameters

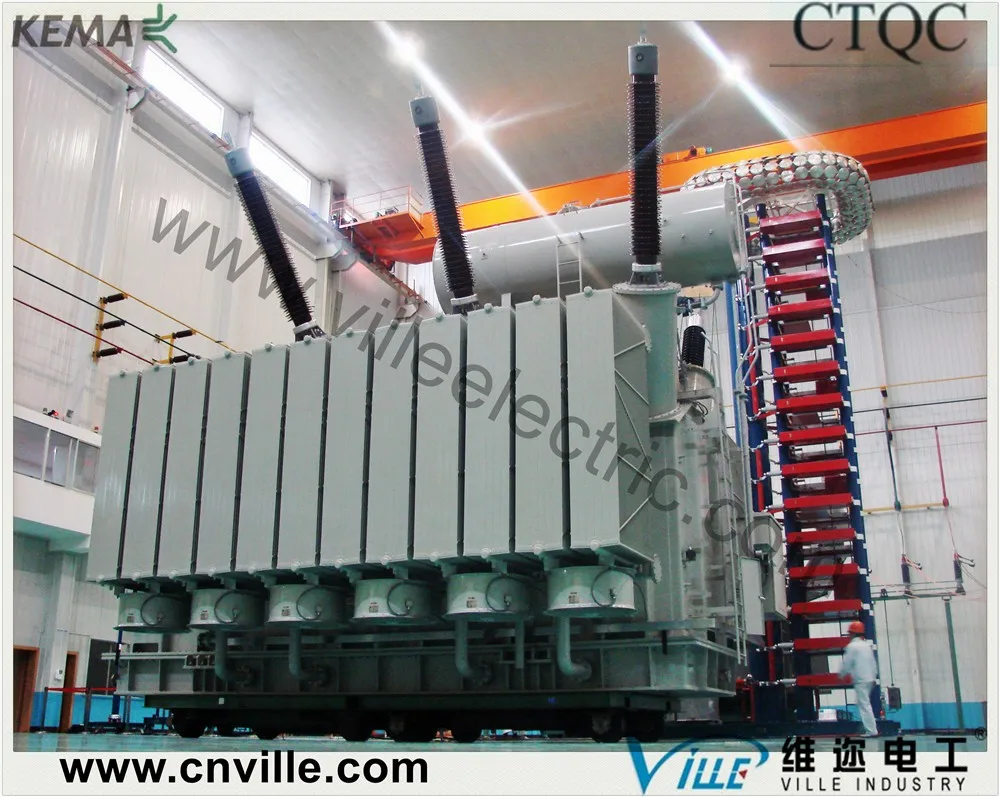

Product Details Show
Why Choose Us

About us

1, the company professional to do  transformer

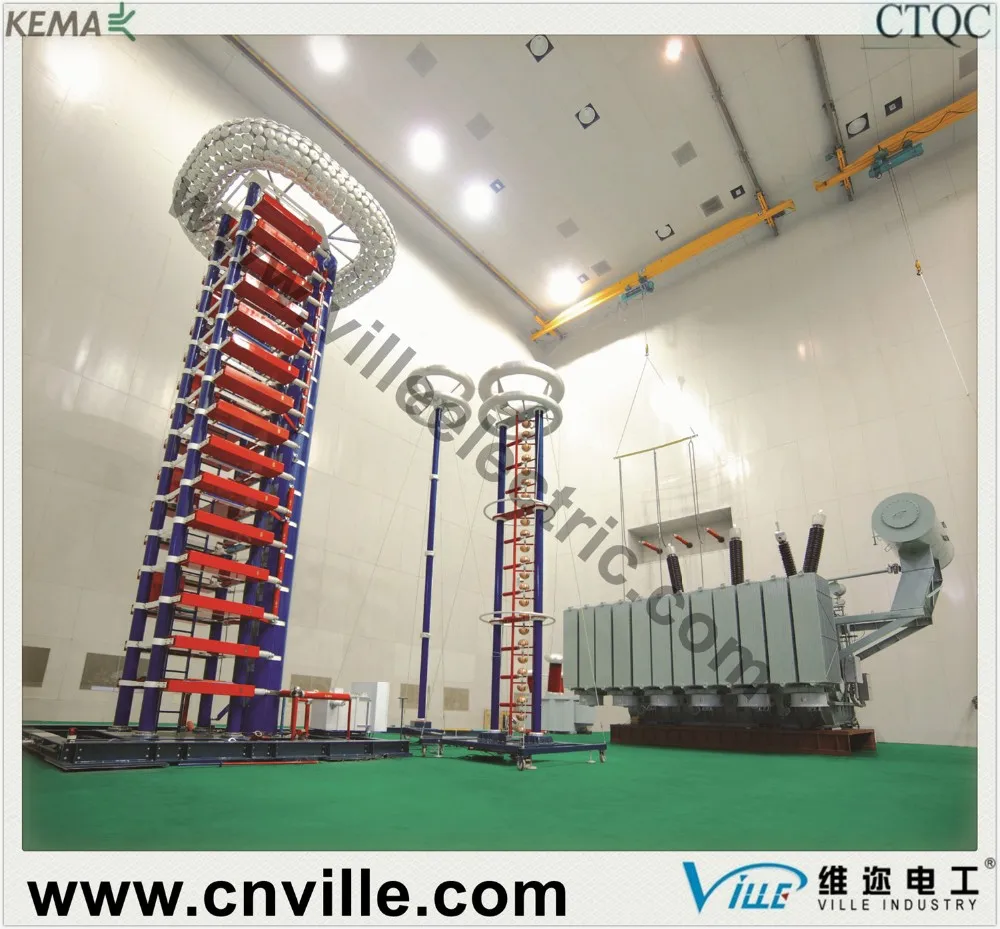

Equipment & technology

2, the quality of  transformer and production is the biggest supplier in  china

Service

3, stable product quality , supply, the good faith management

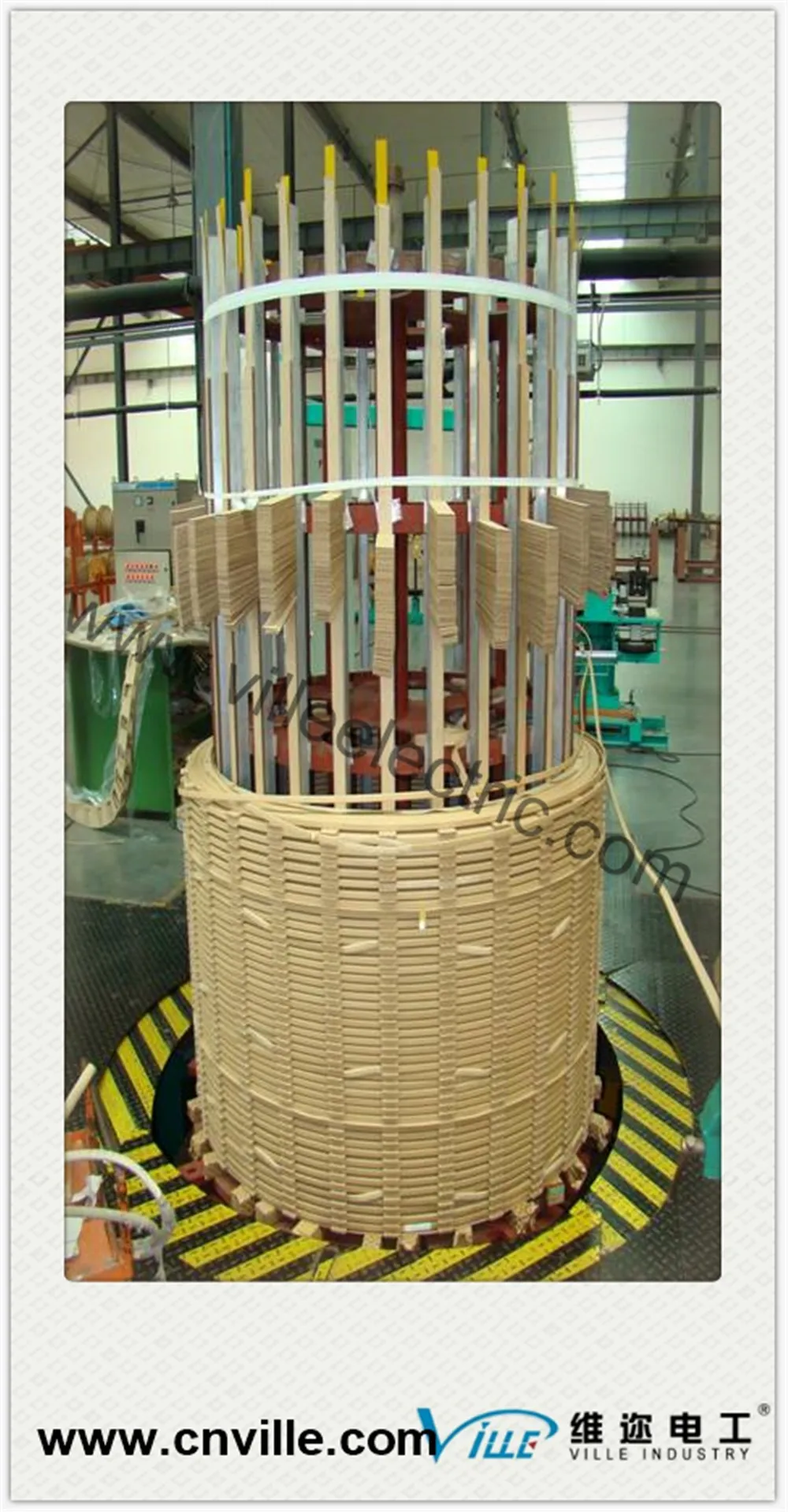

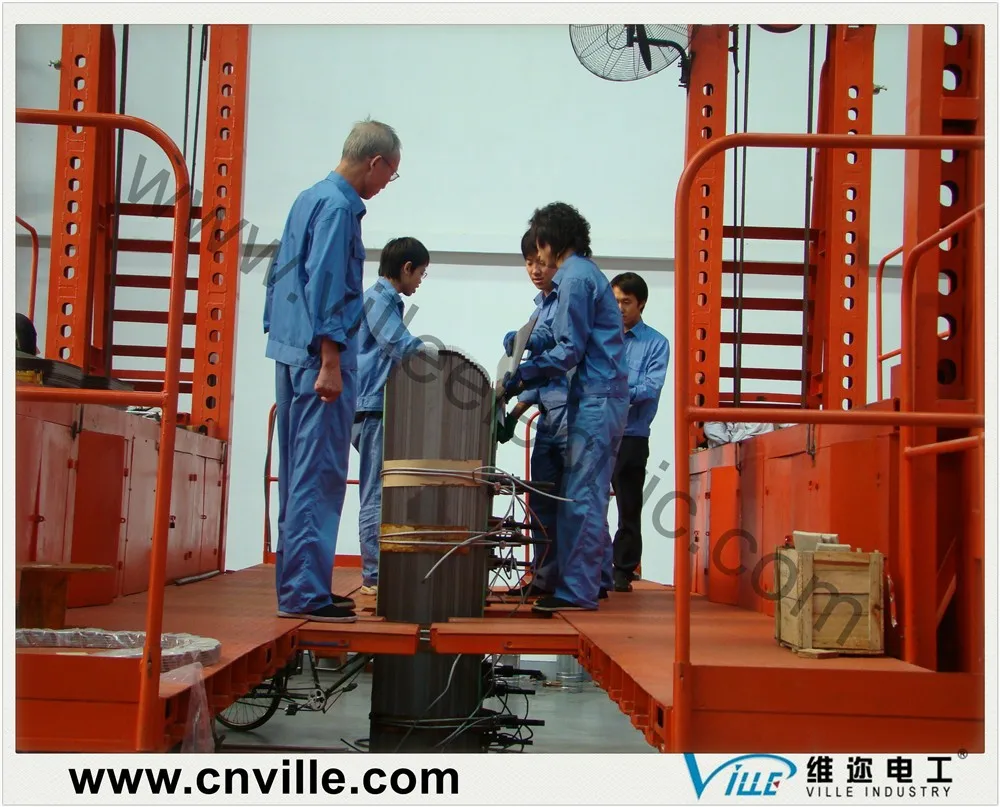

Product Processing

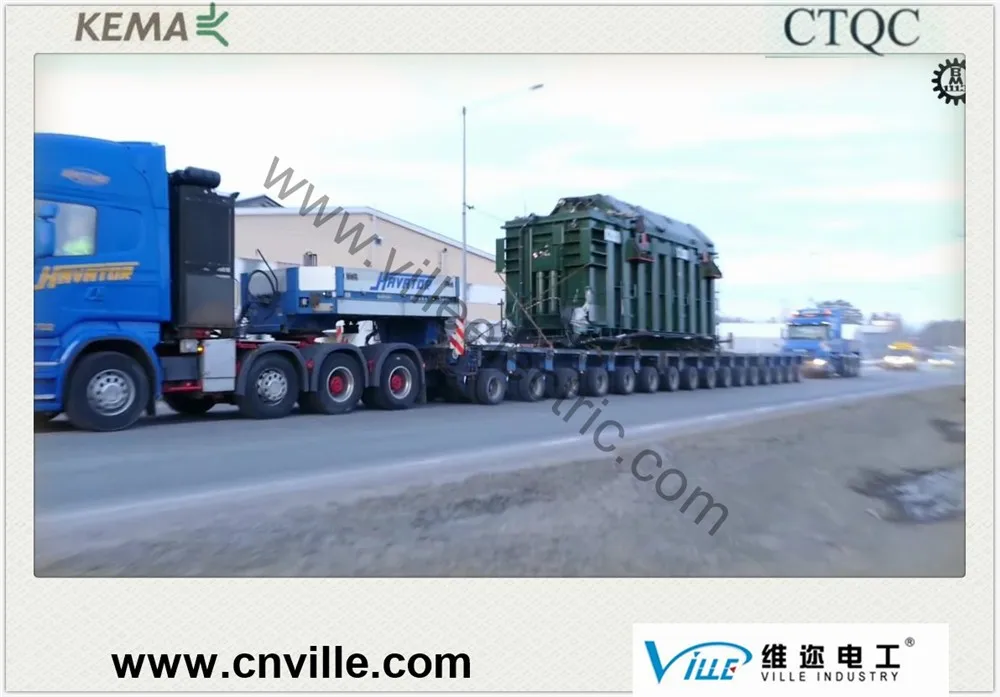

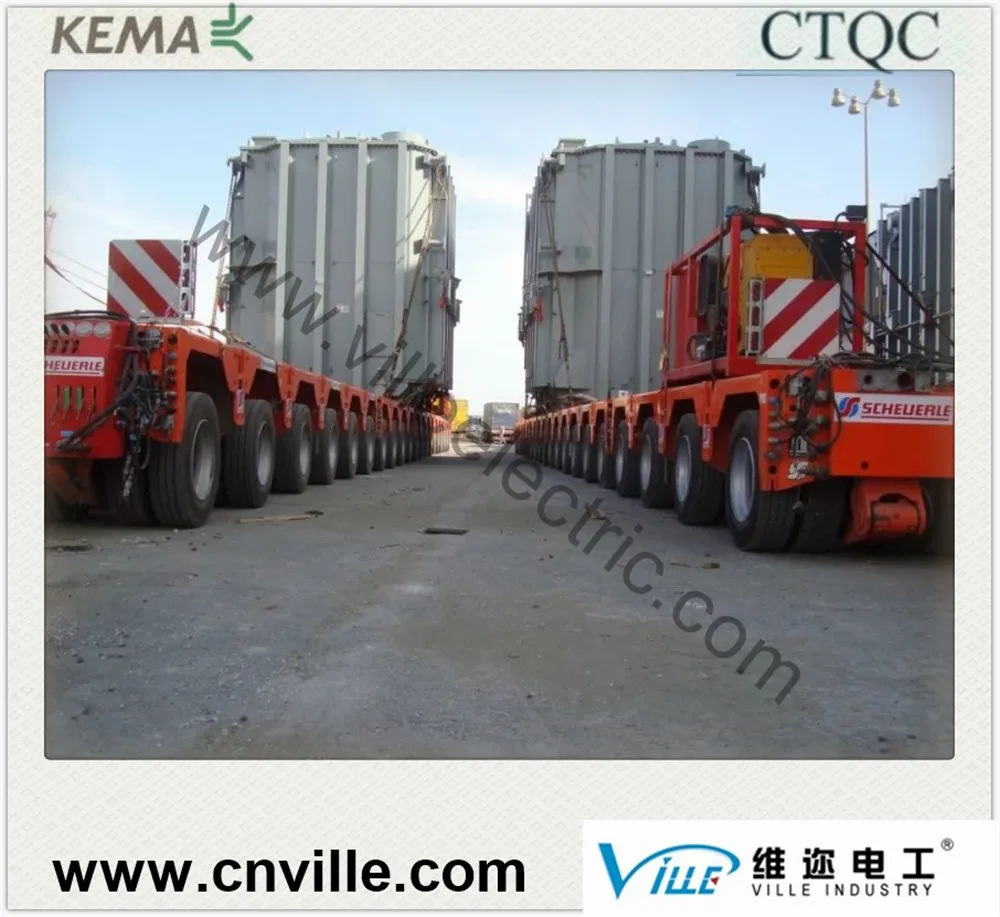

Product Packing
Reference Job

Order Instructions When you choose our company product, please offer following data: Transformer model:                      Rated capacity:                     kVA Phase       :    Three-phase Single-phase Frequency   :     50HZ  60HZ Rated voltage ( H.V. / L.V. ):                 Tapping range: ±       ×       % Insulation level: LI       AC       / LI       AC        kv Veotor group:  Dyn11              Yyno              Other Short-circuit Impedance:        % Cooling method:  ONAN                 ONAF Tapping method:  OLTC                 OCTC                 Other Other requirement:                                             Notes: We also can design special products according to customer's particular requirements. The final dimension is subject to outline drawing.
